The VoIP HUD (Heads-Up Display) provides a centralized interface for managing agent availability, transferring calls, and monitoring VoIP activity in real time. The updated HUD introduces a cleaner layout, improved navigation, and enhanced security features to help teams work more efficiently. These interface enhancements reduce visual clutter, separate internal and external contacts more clearly, and make frequently used tools easier to access without navigating through multiple admin areas.
The new design preserves all existing functionality while reorganizing lists, tabs, and actions to make common tasks faster and more intuitive. Whether you're monitoring agent status, managing external transfers, or opening the HUD in a separate browser tab for multitasking, these updates streamline your workflow and prepare the platform for future enhancements.
See the Updated HUD in Action
The following videos demonstrate the updated HUD interface and highlight the key improvements:
HUD Interface Updates and Features:
Admin Access and Security Improvements:
What's New in the Updated HUD
The updated HUD focuses on interface improvements rather than functional changes. All existing features remain available, but the layout and navigation have been optimized for better usability.
Key Enhancements:
-
New List View: Displays more agents vertically on narrower screens, with an option to toggle back to the original tile view for flexibility.
-
Improved Search: Agents can now be searched by name or number, making it faster to locate specific team members.
-
Account Group Filtering: Users can filter and view agents by Account Groups, providing better organization for larger teams.
-
Reorganized Layout: Filtering options and presence settings have been optimized for better accessibility and easier navigation.
-
New Presence Settings: Additional presence options, including Vacation, Sick, and Meeting, have been added. Each status now has a corresponding icon for quick visual reference.
-
Dedicated Tabs for Internal and External Agents: The HUD now has separate tabs for internal agents ("All Agents") and external transfer destinations, reducing confusion and improving clarity.
-
Enhanced External Agent Management: The process for adding and modifying external transfer numbers has been streamlined for a smoother experience.
-
Centralized Admin Access: A dedicated HUD page has been added to the admin-side Dashboard menu, replacing previous profile-level links for improved security and easier access.
-
"Open in Browser Tab" Button: Admins can now open the HUD in a separate browser tab, making it easier to multitask without constantly switching views.
- Collapsed Call Options View: The call options within the HUD can now be collapsed, allowing you to better customize the panel layout in Vanillasoft without losing functionality of the call options view.
Accessing the HUD as an Admin

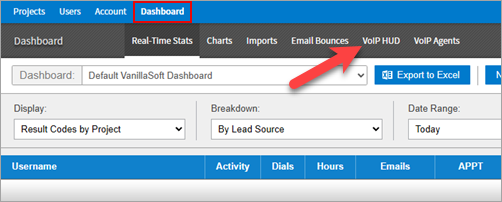

To access the updated HUD, log in to Vanillasoft as an Admin and navigate to Dashboard → VoIP HUD from the main menu.

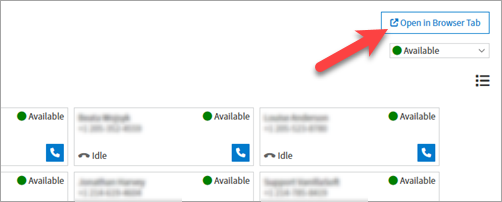

The HUD will open in your current window, or you can click Open in Browser Tab in the top right corner to open it in a separate tab for easier multitasking.
This replaces the previous VoIP HUD links that were located in user profile pages, providing a more centralized and secure access point.
Managing Internal Agents

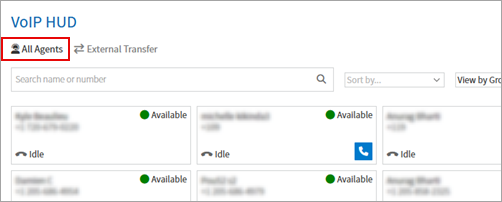

The All Agents tab displays only internal users, making it easier to monitor and manage your team without confusion from external transfer numbers. Use the search field to locate agents by name or number, apply Account Group filters to view specific teams, and toggle between List View and Tile View based on your preferences.

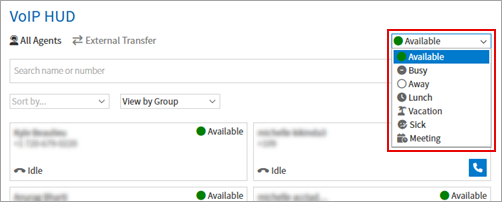

Agent status is displayed using presence icons, including options for Available, Busy, Vacation, Sick, Meeting, and more. This allows you to quickly identify agent availability without opening individual profiles.
Managing External Transfers

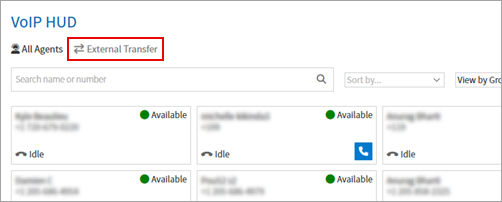

External transfer numbers are now separated into their own dedicated External Transfers tab, making it easier to manage external contacts without accidentally modifying internal agent entries. This streamlined approach provides the same options for both blind and attended transfers while keeping external agents organized in a cleaner, more intuitive interface.
To add or modify external transfer numbers, click the External Transfers tab and use the Add or Edit options. Both blind and attended transfer types remain available, ensuring you can transfer calls using your preferred method.
Using the Updated Interface
The updated HUD interface includes several features designed to improve your workflow:
-

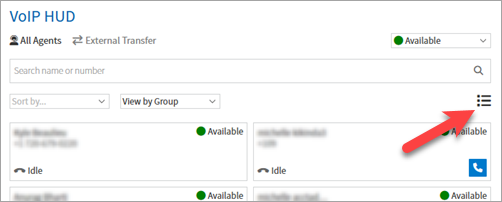

Toggle Views: Switch between List View (ideal for narrower screens or large teams) and Tile View (the original layout) using the view selector.
-

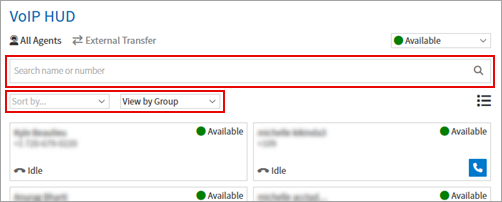

Search and Filter: Use the search field to find agents by name or number, and apply Account Group filters to narrow your view to specific teams or departments.
-
Presence Icons: Quickly identify agent status using visual icons for Available, Busy, Vacation, Sick, Meeting, and other presence states.
-
Separate Browser Tab: Use the "Open in Browser Tab" button to keep the HUD accessible while working in other areas of Vanillasoft, especially useful during high call volumes.
What This Means Going Forward
The updated HUD is designed to make agent management, transfers, and navigation more efficient while maintaining the features teams already depend on. Improved search, filtering, and layout changes also prepare the HUD for future enhancements.
As additional updates are introduced, this structure will allow new functionality to be added without disrupting existing workflows. The clearer separation between internal and external contacts, combined with centralized admin access, creates a more organized and secure way to manage VoIP-related activity.
With these changes in place, the new HUD provides teams with a faster, more intuitive way to manage agent availability and call transfers. For additional support or questions about the updated HUD, contact Vanillasoft Support.
